SWTCH Product Line

REVS is a reseller for the SWTCH product line, ideal for rental apartments and multi-family buildings where communal parking is available. SWTCH's smart EV charging platform streamlines the charging experience for drivers while optimizing usage and revenue for building owners. To learn more about SWTCH Charging and its products, visit their website here.

A SWTCH technician demonstrating how to operate a level 2 charger

SWTCH Products

LITE-ON Platinum |  Level 2

Distributing up to 19.2 kW/hour, the LITE-ON Platinum is a reliable level 2 electric vehicle charger with an attractive design that is easy to own and operate. Its slim and durable design is outdoor rated with hard-wired installation, and its adjustable power output can match your supply panel, electric vehicle, and driving range. To learn more, click here.

Technical Specifications

  • CONNECTORS: Universal SAE J1772

  • POWER: Adjustable up to 19.2 kW
    SUPPLY INPUT: 208/240VAC, split phase

  • CURRENT: 80 A
    SUPPLY FREQUENCY: 50 Hz / 60 Hz

  • LOAD MANAGEMENT: Yes

  • CABLE LENGTH: 25 ft.

  • METERING ACCURACY: Embedded ± 1%

  • REAL-TIME CLOCK: Yes (7 days)

  • WI-FI: 802.11 b/g/n

  • CELLULAR: LTE Cat. M1/ Cat.NBIoT

  • DIMENSIONS: 14.1(H) x 10.6(W) x 5.5(D)inches

  • RFID: ISO 14443 A/B, ISO 15693, NFC, NEMA interoperability protocol

  • DISPLAY: 116(L) x 8.5(W) x 37(H)mm, 5.57mm Character Height, 5x8 Dot Matrix, OLED 20x2

  • DATA PROTOCOL: OCPP 1.6J

  • IP RATING: NEMA 3R

  • IMPACT RESISTANCE: IK10

  • OPERATING TEMPERATURE: -35°C/-31°F to 55°C/131°F

  • STORAGE TEMPERATURE: -40°C/-40°F to 80°C/176°F

  • WARRANTY: 3-year included, 5-year optional

  • CERTIFICATION: UL 50/ 991/ 1449/ 1998/ 2231/ 2594 FCC Part 15B

  • WIRING TYPE: Hardwired

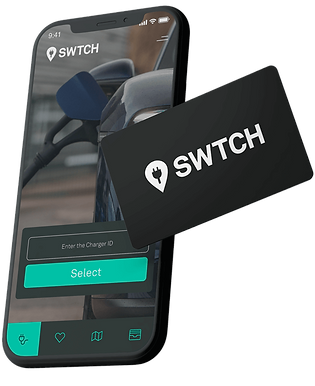

SWTCH EV Charging App

  • iPhone & Android app

  • No download required via SWTCH’s in-browser app

  • Tap-and-go charging with our complimentary RFID card


 To learn more, click here.
