Autel Product Line

REVS is a reseller for the Autel Level 2 charger, tailored to residential apartment buildings. To learn more about Autel Energy and its products, visit their website here.

Autel MaxiCharger AC Ultra


Key Features

Product Information:

  • INPUT/OUTPUT POWER RATING AND CURRENT: 2*19.2kW (240V AC*80A) Output Amperage Adjustable Via Mobile App or DIP Switch, from 6A to 80A On Each Port

  • INPUT/OUTPUT VOLTAGE: 208V±15%; 240V±15%, 60Hz

  • NETWORK TYPE: L1/N+PE, L1/L2/PE
    INPUT CORD: Hardwired
    CONNECTOR TYPE: SAE J1772, 25’ (7.5m) or 16.4' ('5m)

  • GROUND FAULT DETECTION: 20mA CCID

  • PROTECTION: Over-Current, Over-Voltage, Under-Voltage, Integrated Surge Protection

  • CARD READER: Optional: ISO 15693, ISO 14443, NFC
    POWER MEASUREMENT ACCURACY: +/- 1.0% from 1% to Full Scale

General Characteristics:

  • ENCLOSURE RATING: NEMA 3R
    OPERATING ALTITUDE: 6561 Ft.
    OPERATING TEMPERATURE RANGE: -40F ~ +131F

  • STORAGE TEMPERATURE RANGE: -40F~+185F

  • MOUNTING: Floor Mounted or Wall Mounted
    DIMENSIONS (H×W×D): 24.6"x12.6"x6.7" (625mm×320mm×170mm)

User Interface:

  • STATUS INDICATION: LED/APP/LCD (8 Inch, 1280x720 Touch Screen)

  • USER INTERFACE: Autel Charge APP; Autel Charge Cloud CONNECTIVITY: Bluetooth, Wi-Fi, Ethernet, 4G, RS485
    COMMUNICATION PROTOCOLS: OCPP 1.6J (Can be Upgraded to OCPP 2.0.1 Later)

  • USER AUTHENTICATION: APP, RFID Card, Credit Cards (Optional)

  • SOFTWARE UPDATE: OTA Updates Via Web Portal

Certifications & Stanards:

  • SAFETY & COMPLIANCE: UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916, ISO 15118 Plug&Charge

  • EMC COMPLIANCE: FCC 15 Class B
    CERTIFICATION: Energy Star, OpenADR 2.0b
    WARRANTY: 36 Months, Warranty Extension Possible

Autel Charge App

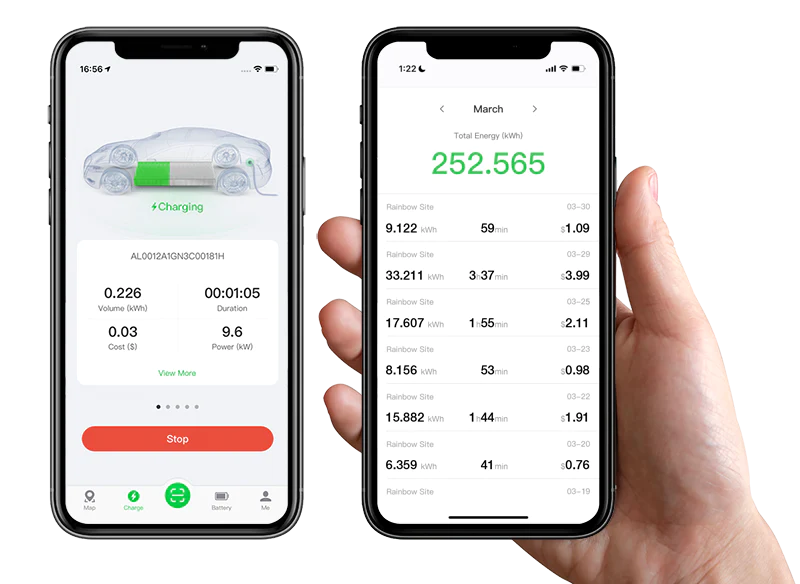

Residents can download Autel's Charge App to track the EV charging status and receive notifications when charging is completed. To learn more, click here.
